Mini-kit 1.01 - Pullman Standard “Carbuilders” corrugated ends
This HO scale mini-kit is a pair of cast resin ends and a set of Chicago Great Western decals than can be used to transform an Intermountain 1937 AAR box car to reflect an interesting prototype. A similar Red Caboose model can also be used but the ends are cast onto the carbody and will need to be removed in order to install these replacement parts.
Model work and photography by George Toman
The proprietary Pullman Standard “Carbuilders” corrugated ends were used on two series of Chicago Great Western 1937 AAR box cars.
CGW 91000-91099 – Built 9/1944, Lot 5771
CGW 92000-92149 – Built 9/1945, Lot 5805

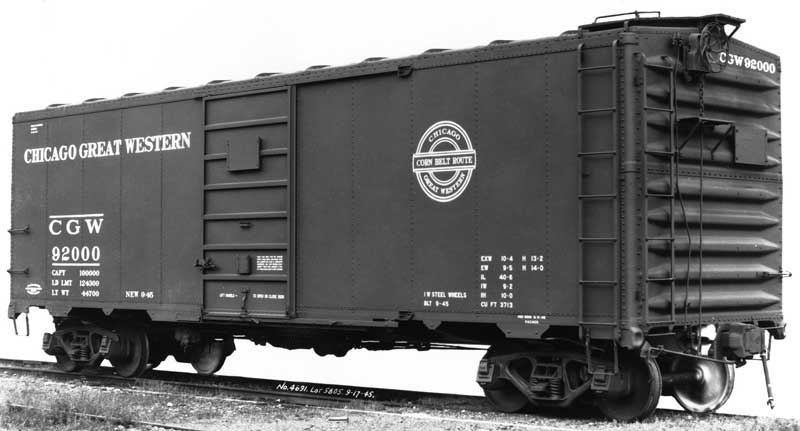

Pullman Standard Builders Photo, Lot 5805, Class Boxcar CGW 92000. Photo from the Mike Skibbe collection.
The Pullman Standard specialty item was specified as “Steel Ends – Carbuilder – Corrugated Round Corner” in the car order bill of materials. The master was created by Jason Kliewer and printed as a 3D solid model. These were cleaned up and used to make molds to cast these resin ends.
The RPM Chicagoland forum has a discussion thread on building these models.
