Detail Parts

Part DP 3.01 - Equipco hand brake wheels and gearboxes (HO scale)

These distinctive Equipco hand brake wheels and gearboxes were used on many freight cars from the late 1930s and into the 1960s. The brake wheel part follows a late 1930s version. Resin Car Works is only producing this one Equipco style. The parts are 3D prints from Shapeways, printed with the Fine Ultimate Detail material otherwise known as FUD.

10 sets of brake wheels and gear boxes are $24, including postage.

We thank Gene Green for his expertise and access to his archive. These parts could not have been produced without his assistance.

Check out this page of prototype images.

Please complete the order form and note Equipco brake wheels and quantity.



Please note these Equipco brake wheel parts will be made as orders arrive. Delivery to your door may be delayed.









Part DP 2.01 - Klasing hand brake wheels and gearboxes (HO scale)

These distinctive Klasing hand brake wheels and gearboxes were used on many freight cars from the 1940s and into the 1960s. The brake wheel part follows 1939 plans and is only one style of Klasing brake wheel. There were modifications over time with changes in the brake wheel casting “cut-outs” pattern. Resin Car Works is only producing this one style. The parts are 3D prints from Shapeways, printed with the Fine Ultimate Detail material otherwise known as FUD.

10 sets of brake wheels and gear boxes are $24, including postage.

We thank Gene Green for his expertise and access to his archive. These parts could not have been produced without his assistance.

Check out this page of images featuring the parts installed on a hopper.

Please complete the order form and note Klasing brake wheels and quantity.



Please note these Klasing brake wheel parts will be made as orders arrive. Delivery to your door may be delayed.





Part DP 1.01 - Semi-Scale Coupler Boxes (HO scale)

The Semi-Scale Coupler Boxes are currently unavailable. Do not order at this time.

Cast resin, semi-scale coupler boxes. These are designed for the Kadee #158 whisker semi-scale coupler. Mounting screws are not included. Click on the image to review a larger size.

20 pair of coupler boxes are $24, including postage.
40 pair of coupler boxes are $44, including postage.

Use 1-72 screws to mount these to your HO scale models. Use a #48 bit to drill a clearance hole through the box. Use a #53 bit to drill a hole in the model floor and tap the hole for the 1-72 screw.

The Semi-Scale Coupler Boxes are currently unavailable. Do not order at this time.







Decals

Small batch decals will be available here from time to time. These will often be era and prototype specific and may not be relevant to a Resin Car Works product. More details will be posted as these decals develop.

The decal sets listed below are now available. All sets are HO scale unless otherwise noted.

Please complete the order form with the proper item code and quantity.

Resin Car Works decal sets are printed by Rail Graphics.

LO-GACX1321 - Owens-Illinois Duraglas covered hopper - $6 set, includes shipping
Decal set is intended for a 1321 cubic capacity covered hopper model. Funaro & Camerlengo kit #7090 or 7091 are good starting points for these prototypes. A brass model was imported years ago by the Precision Scale Company. This two-color decal set will FULLY letter one covered hopper in this paint scheme. The prototypes were seen along several lines in the midwest.
IC001 – Steam Locomotives - $6 set, includes shipping
Decal set will FULLY letter two engines, if you are careful not to repeat certain numbers. Sets are printed in silver lettering.

NKP001 – Berkshires - $6 set, includes shipping
Decal set will FULLY letter one engine in any paint scheme between 1934 and 1958, including former Wheeling & Lake Erie engines. Sets include dulux and white lettering.

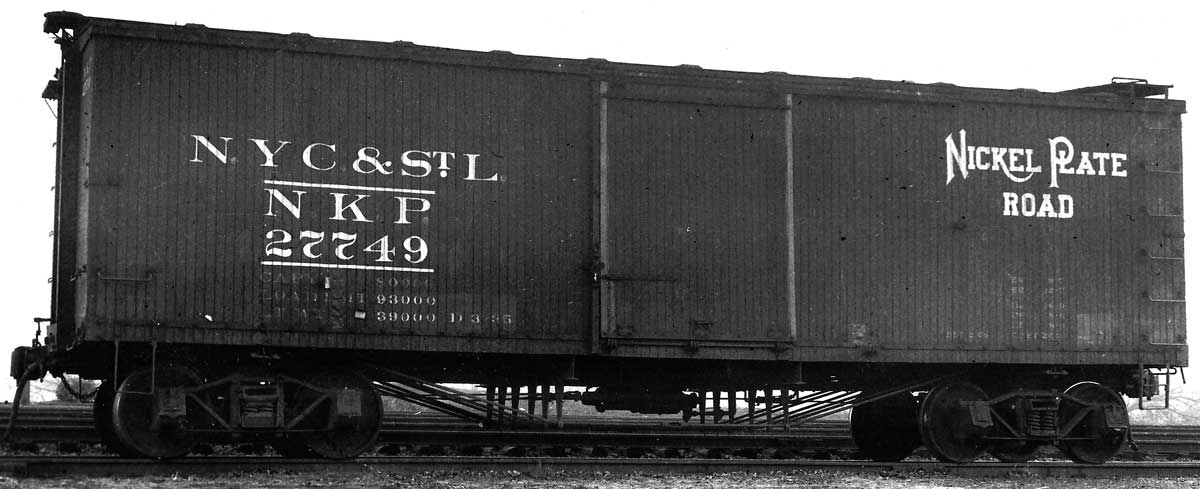

NKP006 - 25000 series boxcars - $6 set, includes shipping
25000-29299 series 38-foot double sheathed boxcars. Decal set will FULLY letter one car in any paint scheme worn by these cars between 1906 and 1941. (or one car in a 1906 delivery scheme AND one car in a post 1939 scheme)
NKP007 - 30000 series hoppers - $6 set, includes shipping
30000-30749 series 30-foot composite twin hoppers. Cars in built February 1918. Decal set will FULLY letter two cars in their delivery scheme, which was worn as late as 1940.
NKP008 - 99000 series hoppers - $6 set, includes shipping
99000-99449 series USRA twin hoppers. Cars built in August 1919 for the TStL&W (Clover Leaf), and acquired by the NKP in 1924. Decal set will FULLY letter two cars in their 1924-1932 standard lettering scheme, which was worn as late as 1940.
NYC002 - short boxcars 2 - $6 set, includes shipping
38’ double sheathed plain boxcars. Covers NYC Lines cars in 1912-1930s lettering.
Set includes lots 275-B, 287-B, 292-B, and 298-B, but is useful for more than 15,900 cars (see page B28 in the 1924 NYC freight car diagram book). This set is specifically a replacement for decals in F&C’s NYC short boxcar kits. Decals will fully letter ONE car. Set includes black ovals for the NYC Lines herald.


NYC005-Oh! - USRA steel twin hopper cars - $6 set, includes shipping
A very limited run of O Scale decals that covers several lots of NYC System USRA hoppers for the 1936-1960 lettering. The decals are white lettering for a mineral brown car and this set will fully letter ONE car.




IT001 – Dulux for Pullman Green Class B’s and C’s - $6 set, includes shipping
Decal set will fully letter one Illinois Terminal Class B or Class C freight motor with either the COMPANY or SYSTEM herald painted Pullman Green with dulux lettering.

IT003 – White lettering for Apple Green painted Class B’s - $6 set, includes shipping
Decal set will fully letter any of the Apple Green painted Class B freight motors. Can also be used to partially letter other equipment painted in the Apple Green scheme.




Please complete the order form with the proper item code and quantity.
